  2. IM2.5 Suspension Kit - Medium 4" Lift
IM2.5 Suspension Kit - Medium 4" Lift
IM2.5 Suspension Kit - Medium 4" Lift
IM2.5 Suspension Kit - Medium 4" Lift
IM2.5 Suspension Kit - Medium 4" Lift

IM2.5 Suspension Kit - Medium 4" Lift

SKU: JEEP035BKML

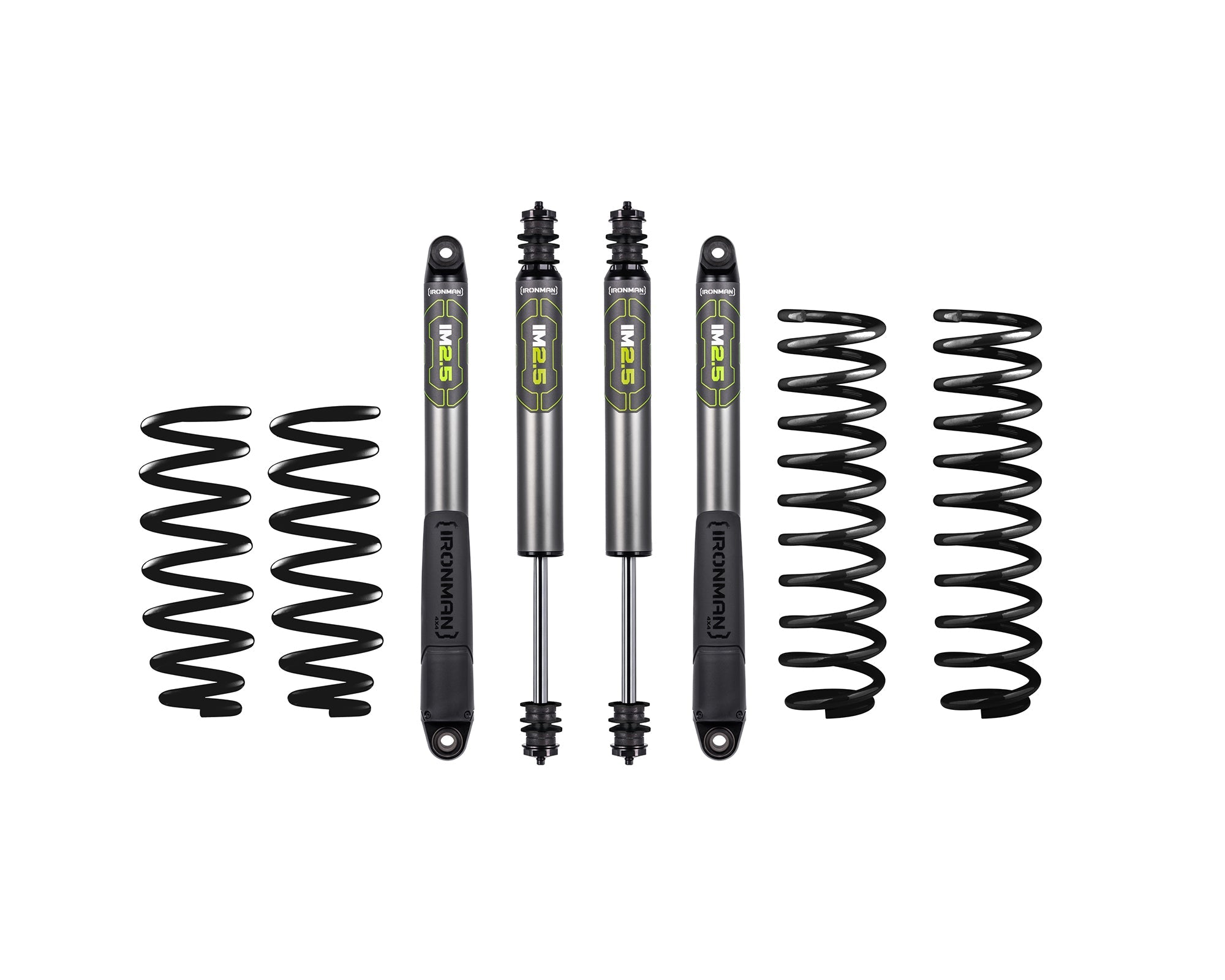

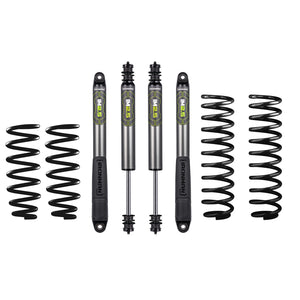

What's inside the kit
Product Qty
Extended Sway Bar Link
SBEXT036
1
Bump Spacer Kit
09-100-009
1
Front Bump Spacer Kit
09-100-008
1
IM2.5 Shock Absorber
73-057-852L
2
Coil Springs - Medium
JEEP035B
1
IM2.5 Shock Absorber
73-057-851L
2
Extended Sway Bar Link
SBEXT035
1
Coil Springs - Medium
JEEP036B
1
Rear Panhard Bracket Kit
PDB036R
1

Warranty

Read our warranty policy

IM2.5 Suspension Kit - Medium 4" Lift

IM2.5 Suspension Kit - Medium 4" Lift

Product Information

Overview

The aluminium advantage


Aluminium is lighter than steel, in fact, the IM2.5 offers a 30% weight reduction over a twin-tube steel shock absorber.
Additionally, the use of aircraft-grade 6061-T6 Aluminium in the IM2.5 offers improved cooling, which in turn means a shock absorber which can run harder, for longer, without diminishing its performance.

Aluminium is known for its improved heat management and has 4 times the thermal conductivity of steel.



Ultimate tuning


The IM2.5 Monotube suspension series features a CNC ported billet aluminium piston with a O-Ring sealed PTFE-Teflon band. The precision channelling allows for ultimate tuning to soften the smallest of bumps in the road.
The billet aluminium Internal Floating Piston (IFP) features class-leading NOK seals and separates the high-pressure 200PSI nitrogen gas from the Fuchs hydraulic oil.



Built to last


With a wall thickness ranging 3-4mm across the range, the IM2.5 monotube shock absorber tube is finished with ultra thick and durable Type 2 anodising, for ultimate protection.

The monotube tech has also allowed us to mount the shock absorbers ‘upside down’ keeping the monotube body mounted high away from rocks and debris, and the 20mm hardened steel piston rod is downward yet protected by a robust dirt shield.
