IM2.5 Suspension Kit - StandardFor Toyota Fortuner AN50 /AN60 (04-15)

SKU: TOY017SKM

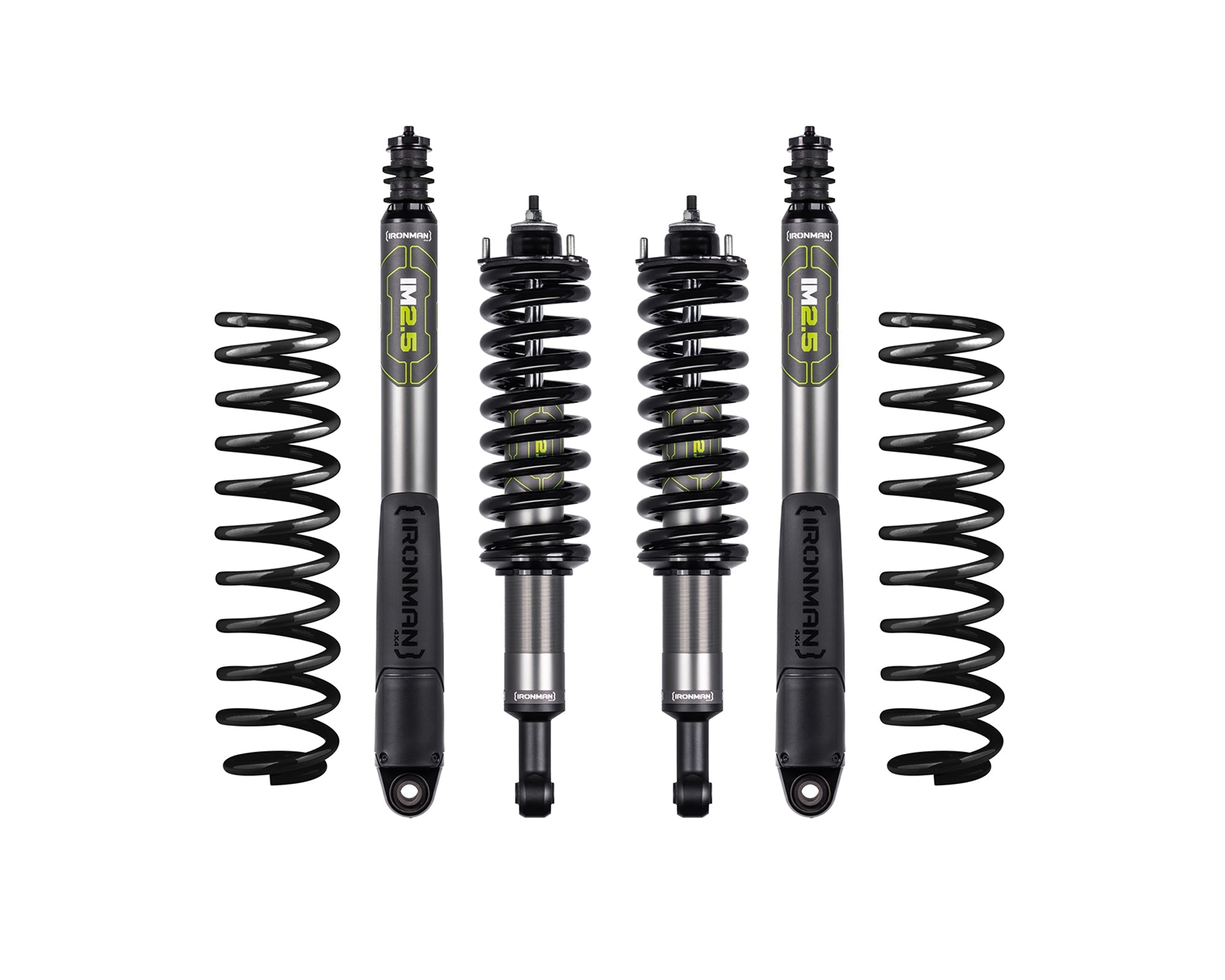

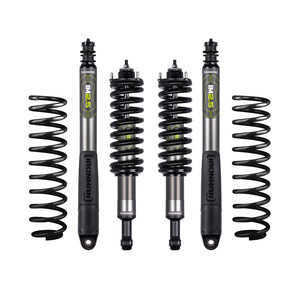

What's inside the kit
Product Qty
IM2.5 Monotube Coil-Over Strut
71-057-710
2
Coil Springs
TOY017S
1
IM2.5 Monotube Shock Absorber
72-057-743
2
Front Swaybar Spacer Kit
09-100-012
1

Warranty

Read our warranty policy

IM2.5 Suspension Kit - Standard

IM2.5 Suspension Kit - Standard

Product Information

Overview

The Aluminium Advantage

Aluminium is lighter than steel, in fact, the IM2.5 offers a 30% weight reduction over a twin-tube steel shock absorber.

Additionally, the use of aircraft-grade 6061-T6 Aluminium in the IM2.5 offers improved cooling, which in turn means a shock absorber which can run harder, for longer, without diminishing its performance. Aluminium is known for its improved heat management, and has 4 times the thermal conductivity of steel.



Ultimate Tuning

The IM2.5 Monotube suspension series features a CNC ported billet aluminium piston with a O-Ring sealed PTFE-Teflon band. The precision channeling allows for ultimate tuning to soften the smallest of bumps in the road.

The billet aluminium Internal Floating Piston (IFP) features class-leading NOK seals and separates the high-pressure 200PSI nitrogen gas from the Fuchs hydraulic oil.



Built to Last

With a wall thickness ranging 3-4mm across the range, the IM2.5 monotube shock absorber tube is finished with ultra thick and durable Type 2 anodising, for ultimate protection. The monotube tech has also allowed us to mount the shock absorbers ‘upside down’ keeping the monotube body mounted high away from rocks and debris, and the 20mm hardened steel piston rod is downward yet protected by a robust dirtshield.
