Product Information

Overview

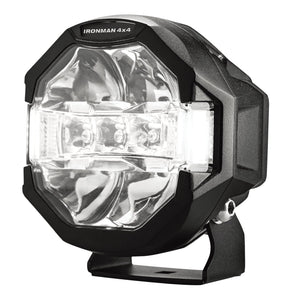

The Ironman 4x4 Scope 5” driving lights combine the best modern illumination technologies, pairing hooded reflectors with TIR optics to create an optimal output in both efficiency and performance. High-power OSRAM LED chips are mounted directly to the cast aluminium housing for improved heat dissipation, creating a sleeker body that can be installed in more places. Two position lights offer a DRL effect, while the illuminated logo completes the modern design. The Scope 5” driving light is available in SPOT or COMBO options.



Dimensions:

Width: 113mm (4.5”)

Depth: 90mm (3.5”)

Height: 114mm (4.5”)



Specifications

Beam Pattern:  Spot or Combo

Power: 42W

Voltage: 10-32 Vdc

LED Chip: OSRAM

Lumens: 4,400

Colour Temperature: 5,700K

Operating Temperature: -40°C to +85°C (-40°F to +180°F)

Connector: Deutsch 3 pin

IP Rating: IP68/1P69K

1 LUX: Spot- 317m, Combo- 293m

Warranty: 3 Years

Certifications: R112, R10, CE, RoHS

Quantity Per Box: 1





Spot vs. Combo Beam Patterns - What they’re best used for?

A Spot and Combo version of the hooded reflector is available - the Combo driving light pushes more light out in a greater spread, while the Spot driving light puts all its effort into getting the light as far down the road as possible.

Spot Beam: This beam type is ideal for long-distance vision on remote highways and long straight, outback roads. It starts narrow and widens out at a longer distance.

Combo Beam: this beam type is a mix of a flood and spot beam, useful for a wider field of view at shorter distances on winding bush and alpine roads.

This beam type starts wide at shorter distances and then tapers in.
